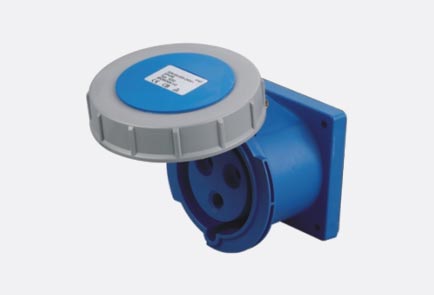

IP67-Blue 3 Pin Female Industrial Socket

Description

lP67-Wall Socket Female is a wall-mounted female interface socket, usually installed on the indoor wall, to provide a convenient power access point for electrical equipment. Its design complies with international safety standards to ensure safety during use.

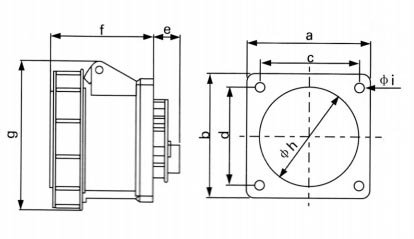

size(mm)	Amp	16			Amp	16			Amp	32			Amp	32
	Poles	3	4	5	Poles	3	4	5	Poles	3	4	5	Poles	3	4	5
	axb	76	76	76	Conductor crosssectional area (mm²) Min to Max				axb	76	76	76	Conductor crosssectional area (mm²) Min to Max
	cxd	61	61	61					cxd	61	61	61
	e	16	16	16					e	20	20	20
	f	61	61	61	1-2.5				f	74	74	74	2.5-6
	g	5.5	5.5	5.5					g	5.5	5.5	5.5
	h	46	46	46					h	60	60	60
	i	80	80	80					i	98	98	98

size(mm)	Amp	16			Amp	63			Amp	125			Amp	125
	Poles	3	4	5	Poles	3	4	5	Poles	3	4	5	Poles	3	4	5
	a	100	100	100	Conductor crosssectional area (mm²) Min to Max				a	120	120	120	Conductor crosssectional area (mm²) Min to Max
	b	100	100	100					b	120	120	120
	c	80	80	80					c	100	100	100
	d	80	80	80	6-16				d	100	100	100	16-50
	e	39	39	39					e	45	45	45
	f	94.5	94.5	94.5					f	104	104	104
	g	114	114	114					g	127	127	127
	h	80	80	80					h	90	90	90
