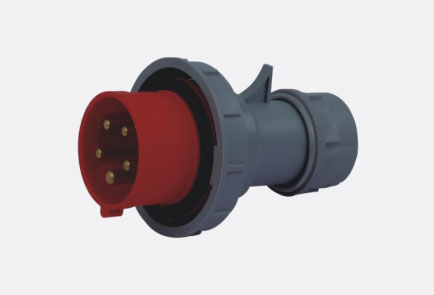

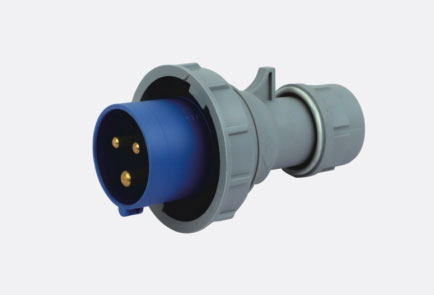

IP67 16 Amp Industrial Socket is specially designed for industrial environment, capable of withstanding high current load and ensuring stable power supply. Its waterproof and dustproof design can adapt to harsh working environment and prolong service life. Widely used in factories, workshops and other places.

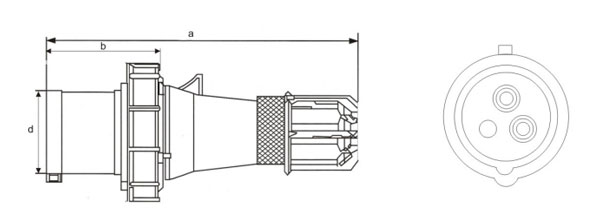

| size(mm) | Amp | 16 | Amp | 16 | Amp | 32 | Amp | 32 | ||||||||
| Poles | 3 | 4 | 5 | Poles | 3 | 4 | 5 | Poles | 3 | 4 | 5 | Poles | 3 | 4 | 5 | |
| a | 118 | 124 | 131 | Conductor crosssectional area (mm²) Min to Max | a | 146 | 146 | 152 | Conductor crosssectional area (mm²) Min to Max | |||||||
| b | 82 | 79 | 87 | b | 100 | 93 | 100 | |||||||||
| d | 6-15 | 6-15 | 8-16 | 1-2.5 | 10-20 | 10-20 | 10-20 | 2.5-6 | ||||||||
| SW | 38 | 38 | 42 | 50 | 50 | 50 | ||||||||||
| size(mm) | Amp | 63 | Amp | 63 | Amp | 125 | Amp | 125 | ||||||||
| Poles | 3 | 4 | 5 | Poles | 3 | 4 | 5 | Poles | 3 | 4 | 5 | Poles | 3 | 4 | 5 | |
| a | 240 | 240 | 240 | Conductor crosssectional area (mm²) Min to Max | a | 295 | 295 | 295 | Conductor crosssectional area (mm²) Min to Max | |||||||
| b | 115 | 115 | 115 | b | 126 | 126 | 126 | |||||||||
| d | 30 | 30 | 30 | 6-16 | d | 44.5 | 44.5 | 44.5 | 16-50 | |||||||
| 16A | 32A | 63A | 125A | |
| 3P110V | TH-0132-4 | TH-0232-4 | ||
| 3P220V | TH-0132 | TH-0232 | TH-0332 | TH-0432 |
| 4P380V | TH-0142 | TH-0242 | TH-0342 | TH-0442 |
| 5P415V | TH-0152 | TH-0252 | TH-0352 | TH-0452 |
