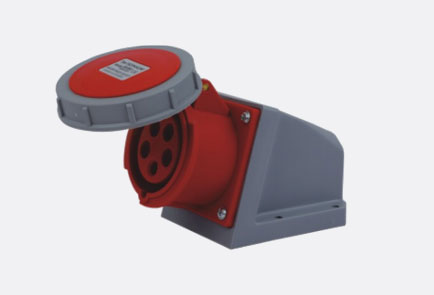

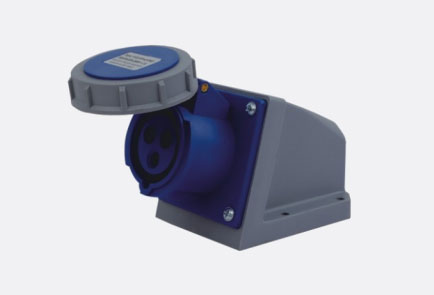

lP67-Wall Socket Female is a wall-mounted female interface socket, usually installed on the indoor wall, to provide a convenient power access point for electrical equipment. Its design complies with international safety standards to ensure safety during use.

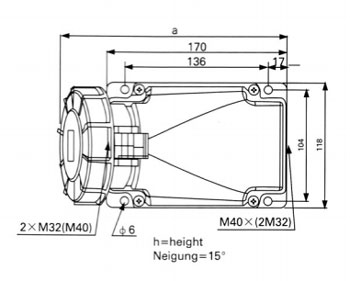

| size(mm) | Amp | 16 | Amp | 16 | Amp | 32 | Amp | 32 | ||||||||
| Poles | 3 | 4 | 5 | Poles | 3 | 4 | 5 | Poles | 3 | 4 | 5 | Poles | 3 | 4 | 5 | |
| a | 151 | 155 | 153 | Conductor crosssectional area (mm²) Min to Max | a | 165 | 165 | 166 | Conductor crosssectional area (mm²) Min to Max | |||||||
| b | 96 | 98 | 103 | b | 107 | 107 | 109 | |||||||||
| 1-2.5 | 2.5-6 | |||||||||||||||
| 63Amp | 125Amp | |||||
| Poles | 3 | 4 | 5 | 3 | 4 | 5 |
| a | 213 | 213 | 213 | 285 | 285 | 285 |
| h | 173 | 173 | 173 | 185 | 185 | 185 |
| Wire flexible (mm²) | 6-16 | 16-50 | ||||
| 16A | 32A | 63A | 125A | |
| 3P110V | TH-1132-4 | TH-1232-4 | ||
| 3P220V | TH-1132 | TH-1232 | TH-1332 | TH-1432 |
| 4P380V | TH-1142 | TH-1242 | TH-1342 | TH-1442 |
| 5P415V | TH-1152 | TH-1252 | TH-1352 | TH-1452 |
