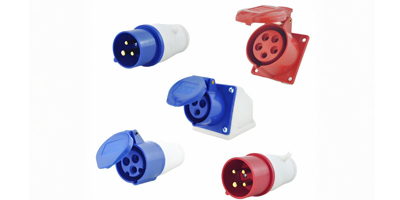

Industrial Plugs and Sockets
Industrial plugs and sockets are specialized electrical connectors designed for heavy-duty use, prioritizing safety, durability, and resistance to harsh environments. Below are key questions and answers about their design, standards, and applications.
The most widely used standard is IEC 60309 (formerly CEE 7/23), which defines connectors for voltages up to 1000V AC/1500V DC and currents from 16A to 125A. It establishes global norms for safety features, mechanical compatibility, and environmental protection, such as IP ratings (e.g., IP66 for dust and water jet resistance).
Color coding follows IEC 60309-1 to prevent mismatched voltage connections. The following table clearly shows the correspondence between colors, voltage ranges, and typical usage regions:
|
Color |
Voltage Range (AC) |
Phase |
Typical Usage Regions |
|
Blue |
200–250V |
Single-phase |
Europe, Asia (for general industrial use) |
|
Red |
380–415V |
Three-phase |
Europe, Asia (for high-power machinery) |
|
Black |
100–130V |
Single-phase |
North America, Japan (for low-voltage systems) |
These colors ensure quick visual identification of compatible voltage ranges.
Two primary mechanisms ensure safety:
Mechanical Keying: Unique pin layouts or angular offsets mean a 400V three-phase red socket cannot accept a 230V single-phase blue plug, eliminating accidental mismatches.
Pin-and-Sleeve Design: Live pins are enclosed in insulated sleeves, and sockets have protective shutters that only open when the plug is fully inserted. The ground pin is always the longest, ensuring it connects first and disconnects last to prioritize earthing.
They are divided into:
|
Type |
Current Capacity |
Poles |
Common Application Examples |
Material Features |
|
Single-Phase |
Up to 32A |
2 or 3 (live, neutral, ground) |
A 16A blue plug for 230V small motors |
Made of robust flame-retardant thermoplastics or die-cast aluminum, can withstand -25°C to +90°C temperatures |
|
Three-Phase |
16A–125A |
3 or 4 (three live wires, neutral, ground) |
A 32A red socket for 400V industrial pumps |
Industrial connectors have IP ratings to resist harsh conditions, as shown in the table below:
|
IP Rating |
Protection Level |
Suitable Scenarios |
|
IP44 |
Splash-proof |
Indoor factories |
|
IP66/IP67 |
Dust-tight and resistant to high-pressure water jets or temporary submersion |
Outdoor sites, construction, food processing washdown areas |
Rubber gaskets and corrosion-resistant coatings (e.g., nickel-plated contacts) enhance durability in wet, dusty, or corrosive environments.
Common ratings and uses are presented in the following table. Choosing the correct rating ensures safe load handling and prevents overheating.
|
Current Rating |
Common Applications |
|
16A |
Portable tools, lighting, small generators in construction or events |
|
32A |
Medium-duty equipment like conveyor belts or pumps in manufacturing plants |
|
63A/125A |
High-power applications such as industrial ovens, transformers, renewable energy inverters |
Yes, though IEC 60309 is global, regions may have adaptations:
|
Region |
Standard Adoption |
Voltage - Color Details |
|
Europe |
Strictly follows IEC 60309 |
Blue for 230V, red for 400V |
|
North America |
Primarily uses NEMA standards (e.g., NEMA L16 for 250V), adopts IEC 60309 in international facilities |
120V single-phase systems use black connectors |
|
Asia |
Countries like China and Japan adopt IEC 60309 |
Japan uses 100V single-phase (black) per JIS standards |
Always check local certifications (CE, UL, CCC) for compliance.
Regular maintenance ensures safety and longevity:
Visual Checks: Inspect for worn pins, cracked insulation, or loose ground connections monthly.
Environmental Cleaning: Remove debris from sockets and replace damaged gaskets in IP-rated units to maintain sealing effectiveness.
Retrofitting: Upgrade older connectors to modern IP66/IP67 models with improved safety features, especially in high-risk environments.
|
Industry |
Connector Usage |
|
Manufacturing |
Three-phase red connectors power motors and robotic arms; blue single-phase units supply control panels |
|
Construction |
IP66 blue sockets (230V, 16A) on portable boards power drills, saws, and site lighting |
|
Renewables |
High-current DC black connectors (63A, 1000V) with UV resistance are used in solar/wind farms |
|
Food & Beverage |
IP69K-rated connectors withstand high-temperature high-pressure water flushing in processing facilities |
By matching connector specifications to environmental and electrical needs, industries ensure safe, efficient power distribution.
